Tool processing example drill

Update：2020/7/30 16:20:49      View：1796
  • Type   Nonstandard
  • Description



Introduction

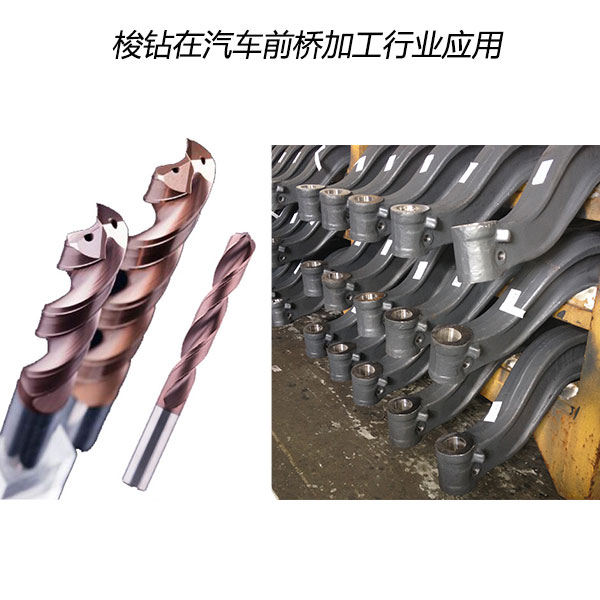

Application of shuttle drill in automobile front axle processing industry

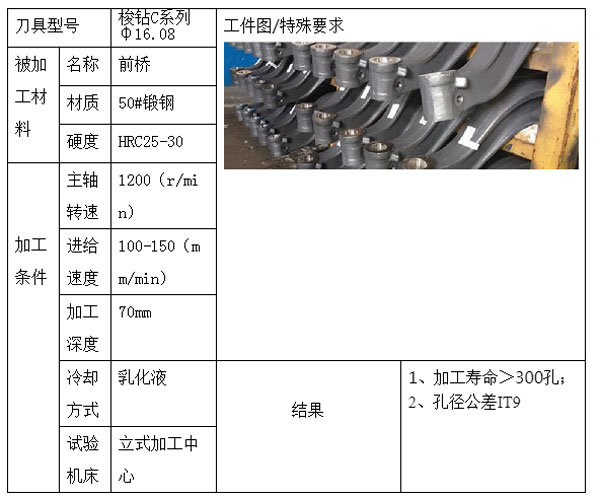

刀具型号：梭钻C系列 φ16.08


被加工材料：前桥;50#锻钢;HRC25-30


加工条件：1200(r/min);100-150(mm/min);70mm


              加工寿命>300孔;


              孔径公差IT9
